Ironless Linear Motors
Linear Motors Built for Precision Motion Control and Smooth Direct Drive
Allient offers ironless linear motors designed for applications requiring high acceleration, speed, and precision. These motors are engineered to provide exceptional performance with reduced settling times and low-velocity ripple, making them ideal for industries such as semiconductor manufacturing, medical devices, and precision automation.
C-Series Linear Motors

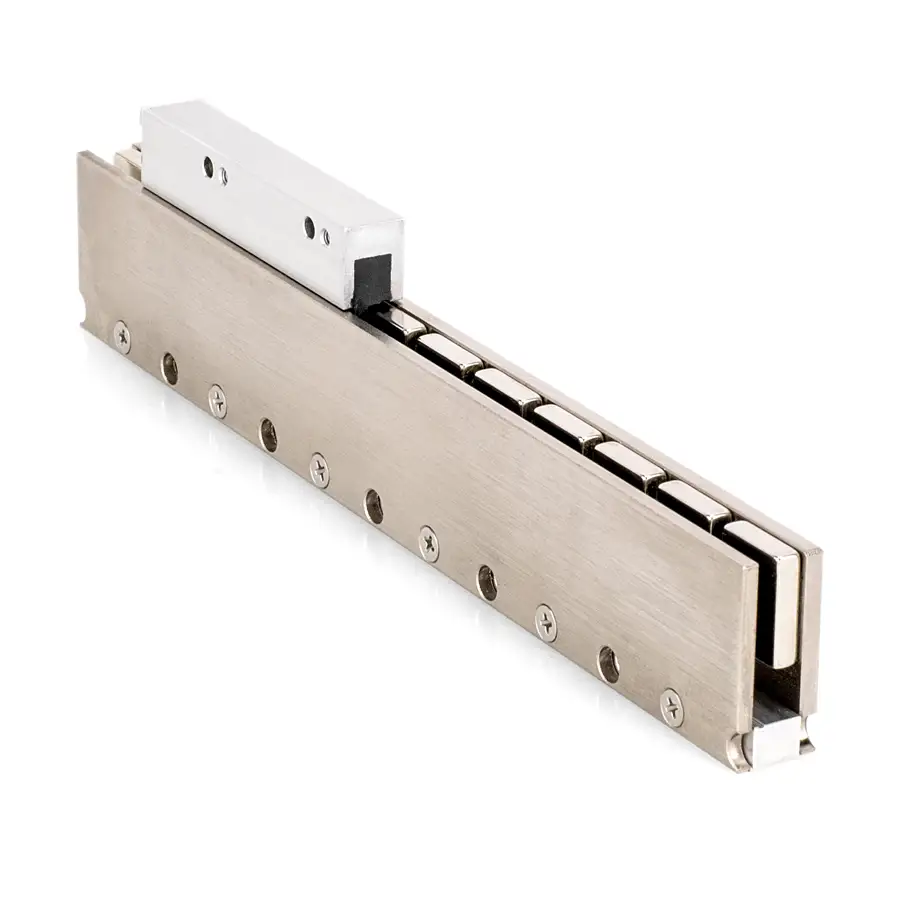

Ironless Linear Motors for Compact, High-Precision Applications The C-Series Ironless Linear Motors from Allient offer ultra-low profile, high-performance motion control with a cog-free design. Engineered for high precision and seamless integration, these motors are part...
View Details >>
P-Series Linear Motors

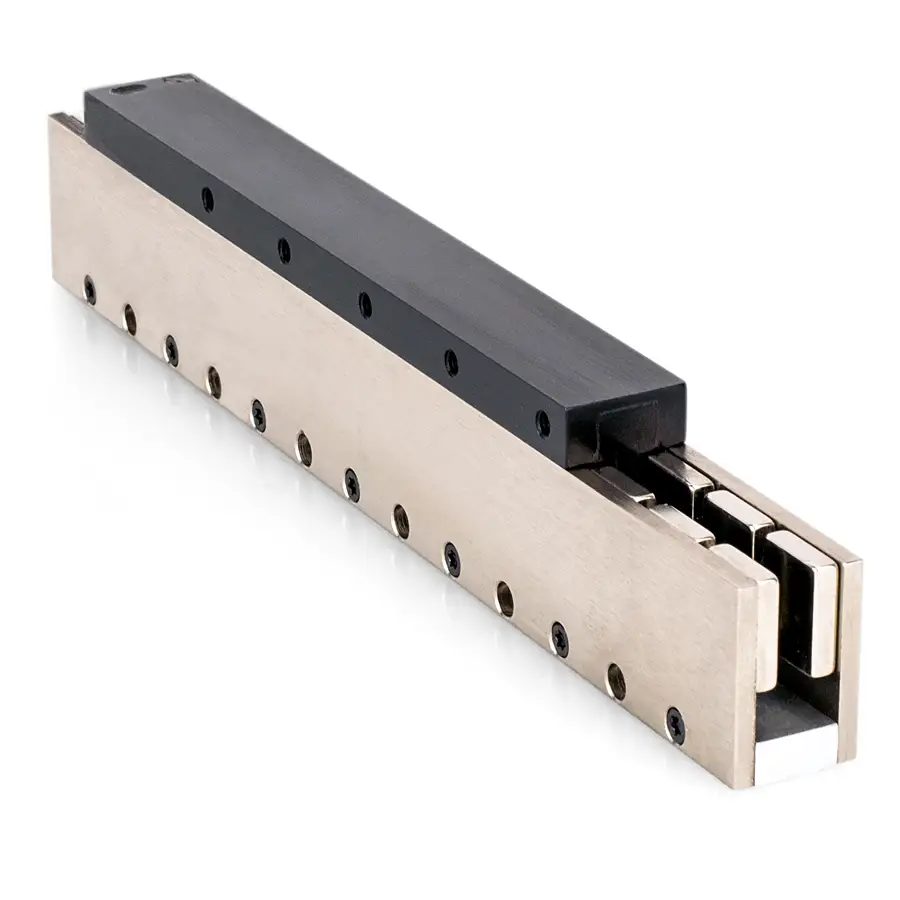

High-Force Ironless Linear Motors for Demanding Motion Control Applications Engineered for precision and power, the P-Series Ironless Linear Motors offer exceptional force density and thermal efficiency. With no cogging and optimized performance, they’re ideal for...
View Details >>Key Features of Allient’s Ironless Linear Motors
- High Force Density: Patented winding technology achieves the highest coil density in the industry, producing 20-60% more force per millimeter of coil length compared to conventional designs.
- Low Moving Mass: The ironless design removes weight from the moving coil enabling higher accelerations.
- Reduced Thermal Losses: Efficient thermal management minimizes heat generation, ensuring consistent performance even under demanding conditions.
- Customizable Configurations: Available in various sizes and force ratings, Allient’s ironless linear motors can be tailored to meet specific application requirements.
- Patented Copper Coil Manufacturing and Winding Methods: Ensures precision placement of conductors with minimal end turns, high slot fill, and an optimal thermal path.
- High Motor Constant (Km): Provides industry leading efficiency in force output per square root watt of dissipated power as heat.
- Rare Earth Magnets: Completes the magnetic circuit with high energy, Neodymium based, temperature tolerant, magnets.
- Bracketless Coil Assemblies: Ideal for integration into custom stages.
- Multi-Unit Module Coils and Magnet Tracks: Easily customizable designs for longer travel and complex motion systems.
- Extremely Low Inductance: With no iron surrounding the coil, inductance is significantly reduced, allowing the motor to respond much faster to current changes and enabling high-fidelity, high-bandwidth control.
- Zero Magnetic Attraction to the Magnet Track: Because the coil contains no iron, there is no varying attractive force, meaning preload does not fluctuate and cogging is essentially eliminated.
- Rapid Current Response: Low electrical time constant for high accuracy, repeatability, and fast settling times.
- Extensive Customization Options: Including added mounting holes, special brackets, custom cables, integrated thermal sensors, vacuum-compatible hardware, cleanroom-ready construction, special plating, private labeling, multi-unit coil modules, and custom magnet tracks.
Applications Across Industries
Allient’s linear motors are trusted by industries requiring high force, precise motion control solutions. Key applications include:
- Semiconductor Equipment: Providing precise and rapid positioning for wafer inspection and lithography systems.
- Medical Devices: Enabling accurate motion control in imaging systems and automated laboratory equipment.
- Precision Automation: Enhancing performance in pick-and-place machines and high-speed assembly lines.
- Other Applications Include: actuators, precision stages, photonics platforms, semiconductor equipment, pick-and-place systems and inspection systems that require exceptionally responsive control at high bandwidths while simultaneously maintaining a low heat rise.
Benefits of Allient’s Ironless Linear Motors
- High Efficiency: The absence of iron in the moving parts eliminates hysteresis and eddy current losses, resulting in superior efficiency.
- Smooth Operation: The ironless design ensures low force ripple, providing consistent and smooth motion essential for delicate processes.
- Energy Efficiency: Optimized designs reduce power consumption, contributing to lower operational costs and environmental impact.
- Ultra-Responsive Control: High motor constant (Km) combined with low electrical time constant ensures precise control, high repeatability, and fast point-to-point settling times.
- Eliminates Backlash and Wear: High intrinsic coil stiffness and direct drive design remove issues associated with ball screws, belts, and rack-and-pinion systems.
- Closed-Loop Control: In closed-loop systems, the motor acts like a linear electromagnetic spring, where current direction and magnetic flux determine motion, enabling very stable velocity and precise positioning.
Why Choose Allient?
As a leader in motion, controls, and power solutions, Allient delivers innovative ironless linear motor technologies that meet the evolving demands of modern industries. Our commitment to quality, precision, and customer satisfaction makes us a trusted partner for advanced motion control solutions.
For more information on Allient’s ironless linear motors and how they can be customized to your specific needs, contact our team of experts.
