A Selection Guide to Motors for Humanoid Robotics Systems
This selection guide explains motor technologies used in humanoid robotics systems and how to select the right motor for your application.
Introduction: Why Humanoids, Why Now
Humanoid robots are moving from research platforms into commercial and industrial use in logistics, manufacturing, inspection, and human-assist applications.
As AI control, perception, and mechanical design improve, demand for electromechanical systems has increased significantly. Motors are central to humanoid performance, directly affecting torque density, precision, backdrivability, efficiency, and stability.
Humanoid systems build on high-performance robotic arm technology, where compact high-torque actuation and integrated joint design are already established.
This whitepaper provides a technical overview of motor selection considerations for humanoid robotics systems, based on Allient Inc.’s experience in frameless motors, slotless motors, and integrated actuator architectures.
What Makes Humanoid Robots Different
Humanoid systems do not operate in static conditions. Even when stationary, they continuously make small corrective movements across multiple joints to maintain balance.
This means that motion is never fully settled. The system is always in a state of adjustment, where joint behavior is continuously updated through feedback control.
Motion is also tightly coupled across the body. A change in one joint influences behavior in other joints due to both mechanical linkage and control system interactions. As a result, joints cannot be treated as independent units.
External interaction forces add another layer of complexity. Contact conditions and environmental forces vary continuously during operation, making system response inherently unpredictable.
Motor selection must therefore be based on system-level behavior rather than isolated component specifications.
Where Motors Are Used in Humanoids
Lower body joints: locomotion and load support. These joints operate under high, continuously varying torque demands and must tolerate impacts while maintaining stable, controlled motion.
Upper body joints: coordination and manipulation tasks, where precision and controlled motion are important.
Hands and end-effectors: fast response and fine positional control for interaction with objects and environments. Actuators prioritize low inertia, minimal cogging, high-resolution feedback sensing, and tight control loops for dexterous interaction with objects.
The torso: central role in maintaining overall balance and distributing motion across the system.
Neck and head joints: orientation and sensor alignment. These joints require smooth control to support sensor stabilization and safe human interaction.
Requirements for Human-Like Motion
Human-like motion is not defined by smooth trajectories alone. It is defined by continuous correction and adaptation during movement.
A humanoid system must respond in real time to changes in load, balance, and external contact. This requires actuators that can operate reliably under closed-loop control conditions.
Motion is therefore not executed as a fixed sequence but is continuously adjusted based on feedback from the system.
Motor Technologies Used in Humanoids
Humanoid systems typically use a combination of motor technologies depending on joint function.

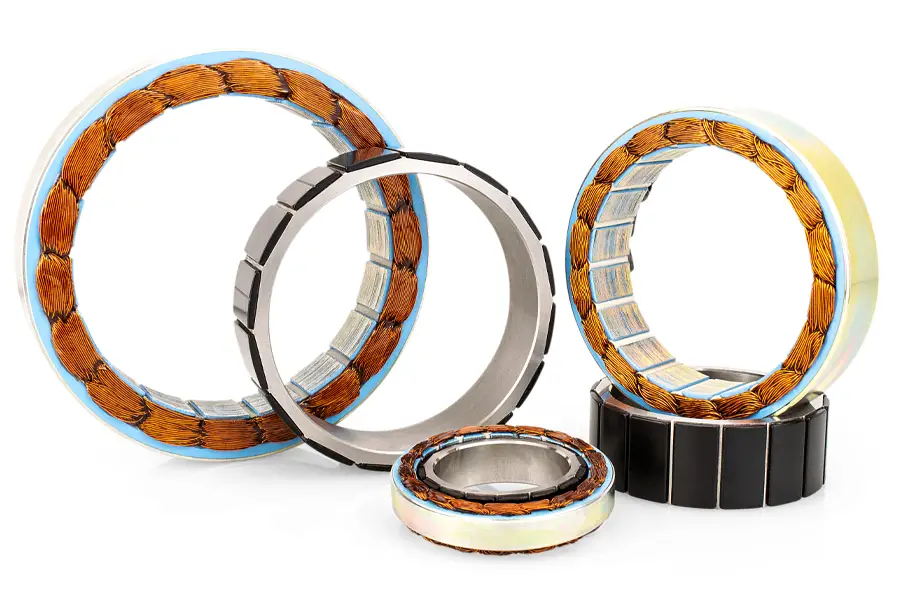

High torque density motors: compact size and high output requirements. Frameless motor designs are often integrated directly into joints to reduce weight and improve mechanical efficiency.

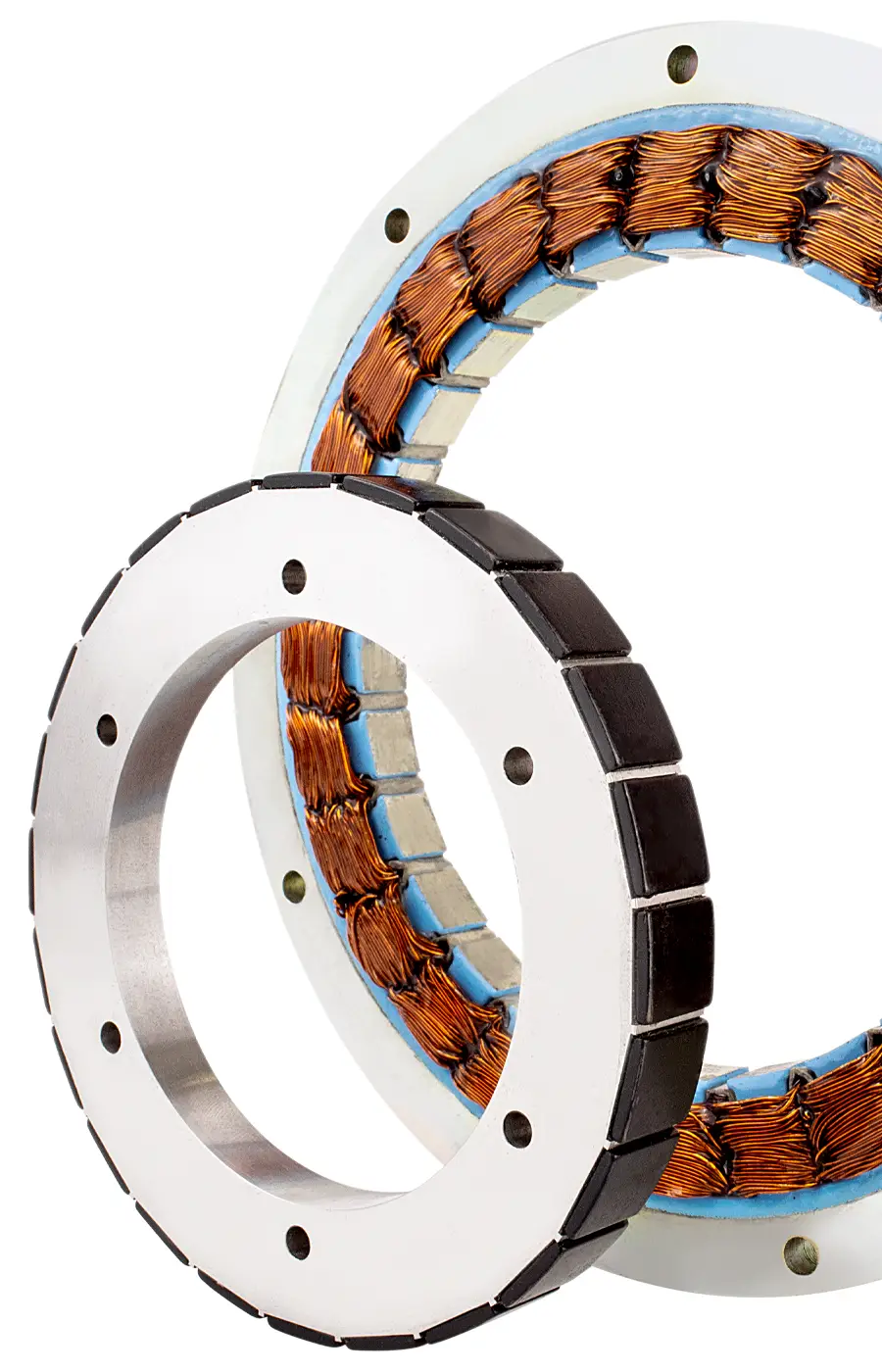

Slotless motors: used in joints where smooth, organic motion is required. Traditional motors that are “slotted” and have magnetic attractions and interference between the rotor and stator. When using a slotless or air-core motor, this magnetic attraction that appears as a disturbance to the smoothness of motion is effectively eliminated.
Gear reduction systems: increase torque output while shaping the joint’s controllability and mechanical impedance. Different gearbox architectures such as cycloidal, harmonic, and planetary each introduce distinct trade‑offs in backdrivability, precision, efficiency, friction, and impact resistance.
Direct‑drive configurations: provide smooth torque output and high backdrivability, enabling natural interaction and precise stability control. With no gearbox friction or compliance, they offer high torque fidelity, rapid disturbance response, and low mechanical impedance for safe, responsive motion.
Each approach involves trade-offs between torque density, control precision, mechanical complexity, and system integration constraints.
Critical Performance Parameters
Motor selection cannot be based on single-point specifications. It requires evaluation of multiple interacting parameters under dynamic conditions.
Motor constant: determines how much torque a motor can produce before hitting thermal limits. Higher values reduce heat generation for the same load, enabling lighter actuators with greater sustained performance and better overall power to weight efficiency.
Torque capability: consideration over the whole duty cycle of continuous and peak operating points ensures the motor runs cool in the robot and prevents heat from becoming a failure mode.
Inertia: governs how quickly a joint can accelerate, decelerate, and respond to disturbances. Lower inertia improves agility, balance recovery, and energy efficiency, making it essential for natural, human like motion in humanoid robots.
Response speed: ability to correct disturbances in real time, utilizing high precision feedback devices and tight control loops.
Integration density: affects system mass distribution, influencing balance and upstream joint loading.
Control compatibility: operation within closed-loop systems where timing and feedback behavior directly impact system stability.
Thermal limits: continuous torque operation under compact joint-level thermal constraints in system design.
KEY ENGINEERING CHALLENGES
Humanoid actuation requires coordination under tightly coupled multi-joint dynamics. Individual actuator behavior cannot be isolated from system-level response, as disturbances propagate across mechanical and control subsystems.
A primary challenge is managing coupled joint dynamics. Motion in one joint affects multiple others, requiring coordinated torque response and real-time correction across the system.
Thermal limitations are a key constraint in compact actuator design. High continuous torque demand within restricted joint volumes requires careful thermal balancing to maintain performance stability.
Backdrivability versus control stiffness presents a fundamental trade-off. Higher compliance improves interaction behavior but reduces inherent resistance to external disturbance if not properly controlled at the system level.
Integration constraints, including packaging density, mass distribution, and gearbox selection, further constrain actuator design and directly influence overall humanoid stability.
System-Level Actuation Design
Humanoid actuation must be treated as a system‑level engineering problem rather than a collection of independent joints. Motors, gearboxes, precision feedback devices, drive electronics, and sensors all work together to determine torque delivery, motion quality, and overall stability.
Disturbances travel through the entire kinematic chain, so the behavior of any single joint depends on whole‑body dynamics and the control system that coordinates them. As the system grows in complexity, integration challenges such as thermal management, wiring density, sensor placement, drive bandwidth, and mechanical packaging become major constraints.
Effective actuation design requires optimizing the entire stack to achieve scalable and reliable performance during continuous dynamic operation.
Selecting the Right Motor for Humanoid Applications
Motor selection is not defined by peak performance alone, but by how the actuator performs under continuous, dynamic, thermally constrained operation.
Different joints within the robot impose different requirements and lead to different motor architectures. Load bearing axes like hips and knees demand high continuous torque and thermal robustness, driving the need for high torque, thermally optimized slotted designs for heavier joints. While joints such as wrists, neck, and ankles prioritize low noise, smooth torque production, and precise motion control. Slotless motors on precision critical axes to eliminate cogging torque where smooth, repeatable motion is required.
Key considerations include real-time responsiveness, stability under changing loads, integration constraints, and behavior under multi-joint coupling conditions.
The motor must maintain consistent performance when the system is actively correcting for balance and external disturbances.
Selection decisions should reflect how the actuator behaves as a continuously active system rather than as an isolated component.
Practical Motor Selection Checklist
☐ What is the primary joint role (locomotion, manipulation, balance, interaction), and what motion profile does it impose?
☐ What torque is required across the full duty cycle and in worst-case peak scenarios?
☐ What is the highest achievable motor constant within the joint’s operating requirements, thermal limits, and weight constraints?
☐ What efficiency is required and achievable to stay within the robot’s power budget, given battery constraints and expected operating time on a single charge?
☐ What level of real-time responsiveness is required for disturbance rejection and stability?
☐ How tightly coupled is this joint within the full-body system dynamics?
☐ What are the integration constraints (thermal path, operating environment, form factor, cabling)?
☐ What thermal constraints exist under continuous dynamic operation and compact packaging?
☐ What level of external interaction variability is expected (contact forces, environment)?
☐ What precision and repeatability are required for the task?
☐ What trade-offs are acceptable between torque density, weight, and controllability?
Humanoid Robot Use Cases
Humanoid robots are being developed for environments such as logistics, manufacturing support, inspection tasks, and human interaction settings.
In these environments, conditions change continuously. Payloads vary, surfaces differ, and human interaction introduces unpredictable forces.
This requires actuators to maintain stability under dynamic and uncertain conditions.
Market Considerations and Industry Direction
Humanoid robotics is transitioning from research environments into early-stage industrial and commercial deployment, particularly in logistics, manufacturing, inspection, and human interaction use cases.
This shift is driving demand for scalable actuator architectures that balance performance, reliability, and manufacturability. System-level integration is becoming as important as raw motor performance.
Cost efficiency and production scalability are emerging constraints as platforms move beyond prototype systems. This is pushing adoption toward modular and standardized actuator designs.
Industry direction is moving toward higher integration density, reduced assembly complexity, and improved serviceability at the joint level to support broader deployment.
Future Trends in Humanoid Actuation
Humanoid actuation systems are moving toward higher integration of motor, gearbox, sensing, and control into compact unified actuator modules.
Torque density improvements remain a central development focus, particularly through frameless, slotless, and axial flux motor architectures.
Direct-drive and quasi-direct-drive systems are increasingly used in applications requiring high backdrivability, stable interaction, and simplified mechanical transmission.
Embedded sensing at the actuator level, including torque and position feedback, is becoming more common to improve control accuracy and dynamic response.
System architecture is shifting toward tighter electromechanical integration, reduced mechanical complexity, and higher dependence on real-time feedback control.
SUMMARY
Motor selection for humanoid robots is a system-level decision.
Humanoid systems operate in continuous motion with tightly coupled joints and changing external conditions.
Because of this, actuator performance cannot be evaluated in isolation.
Understanding motor behavior under real-world dynamic conditions is essential for stable humanoid system design.
REFERENCES
-
G. A. Pratt and M. M. Williamson, “Series Elastic Actuators,” IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 1995.
-
S. Kajita et al., “Biped Walking Pattern Generation by Using Preview Control of the Zero-Moment Point,” IEEE International Conference on Robotics and Automation (ICRA), 2003.
-
R. Featherstone, Rigid Body Dynamics Algorithms, Springer, 2008.
-
B. Siciliano, L. Sciavicco, L. Villani, and G. Oriolo, Robotics: Modelling, Planning and Control, 2nd ed., Springer, 2010.
