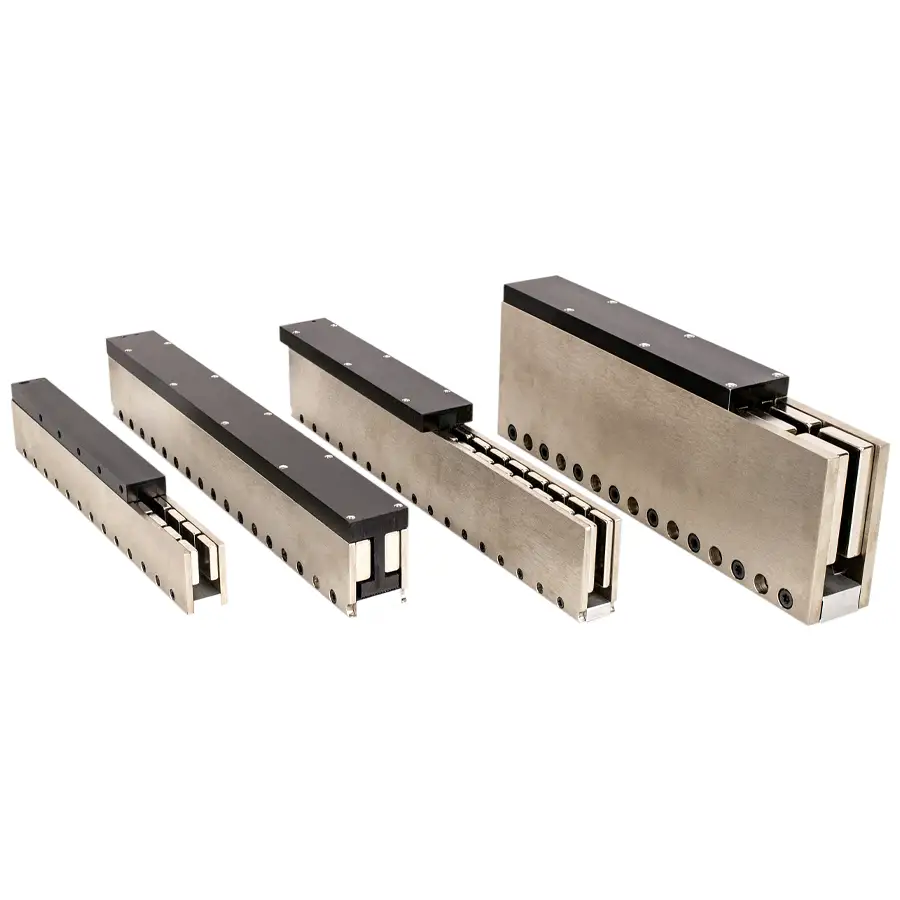

P-Series Linear Motors

High-Force Ironless Linear Motors for Demanding Motion Control Applications

Engineered for precision and power, the P-Series Ironless Linear Motors offer exceptional force density and thermal efficiency. With no cogging and optimized performance, they’re ideal for demanding motion control systems—backed by the reliability of Allient and the motion expertise of Allied Motion.

Key Features

• High Force Output: Continuous forces up to 424 N (95.3 lb) and peak forces up to 1340 N (301 lb)—engineered for high-load linear motion applications.
• Ironless, Cog-Free Design: Delivers ultra-smooth motion and precise velocity control with no cogging or detent forces—ideal for point-to-point or scanning applications.
• Patented Winding Technology: Unique Allient coil design produces more force per millimeter and improved thermal handling, reducing hot spots and extending duty cycles.
• Flexible, Scalable Configuration: Multiple coil lengths, PTC/NTC thermal sensors, and custom mounting options available.
• Rugged Structural Design: Dual-magnet U-channel and robust coil assembly provide mechanical integrity and vibration stability.

Applications

• Semiconductor lithography and metrology
• Medical imaging and diagnostic systems
• Precision industrial scanning
• Optical path and stage positioning
• Aerospace and defense motion platforms

Allient linear motors bring best-in-class engineering to the forefront of motion control. Whether you’re building compact high-performance systems or integrating into precision equipment, the P-Series delivers force, efficiency, and precision—without compromise.

The P-Series linear motors performance is summarized below.
