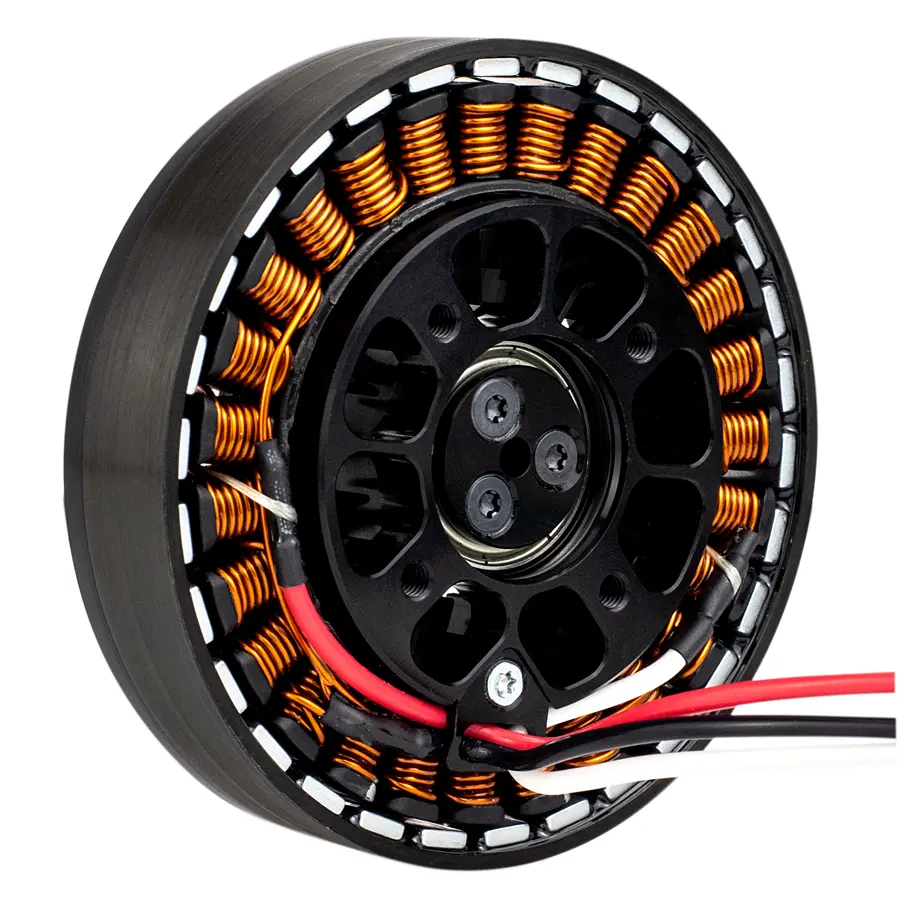

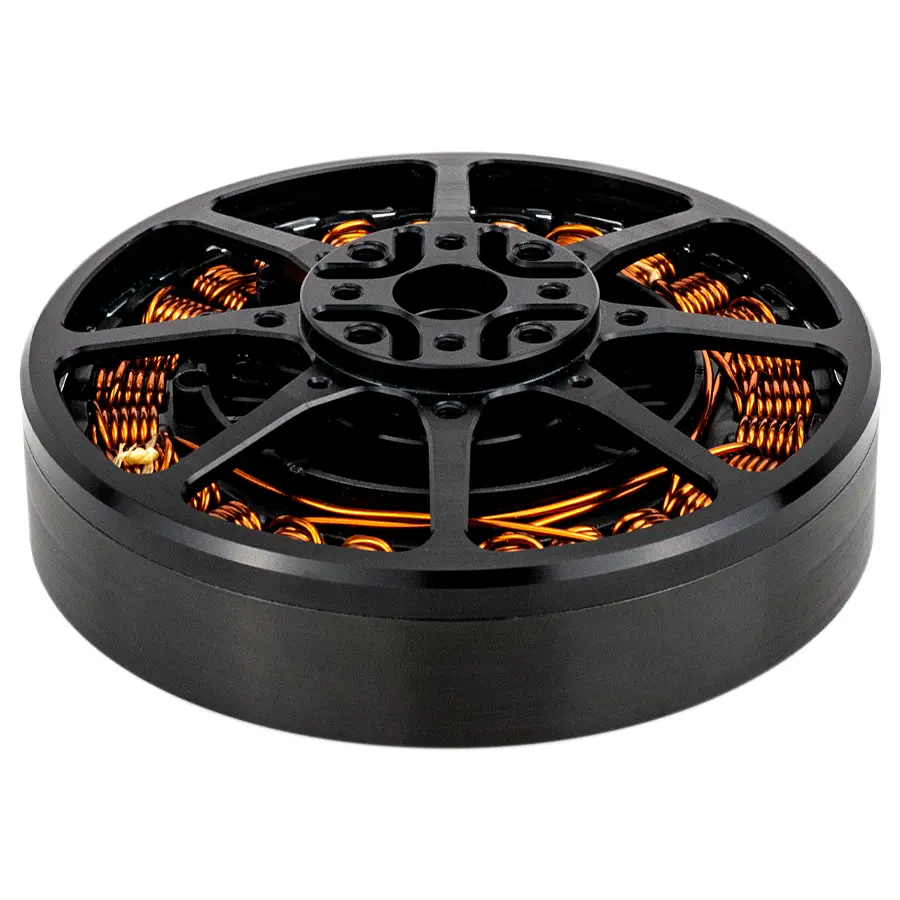

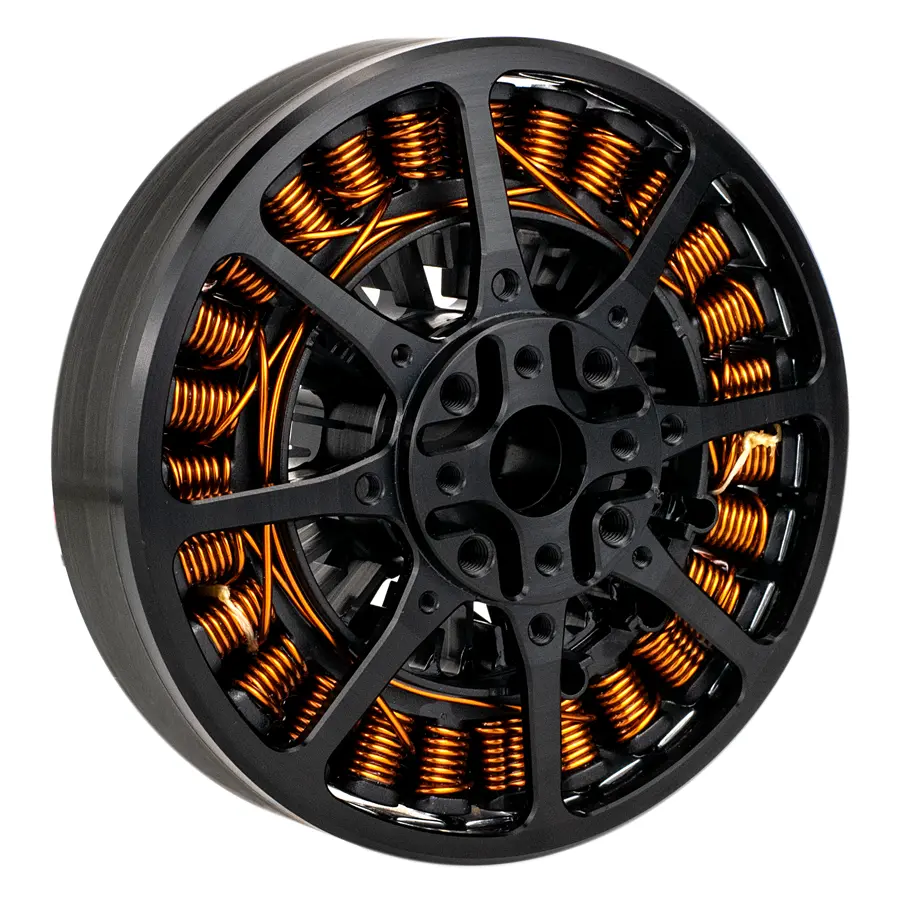

Motors for Drones, UAV, UAS
Preliminary Release

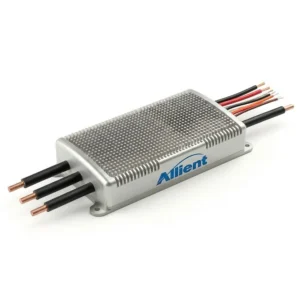

Allient brings decades of engineering expertise and high-volume United States manufacturing to the forefront of drone/UAV/UAS propulsion. COTS propulsion motors available for rapid deployment and ESC drivers are under development to support future integration needs.
Offering high torque, low weight, and exceptional efficiency in a rugged bearing design for reliable thrust in demanding environments. Optional advanced windings and optimized cooling design for thrust applications. Available with or without integrated drive and control.
Contact our Solutions Center engineers for questions about customization with mechanical, electrical, special materials, and performance tuning.
Specifications Overview
-
Frame Size (mm)63 - 126
-
Overall Length (mm)25 - 36
-
Bus Voltage (VDC)48
-
Rated Torque (Nm)0.4 - 5.71
-
Rated Speed (RPM)3,800 - 10,280
-
Rated Power (W)400 - 2,300
Need Assistance? Call: 716-242-7535
