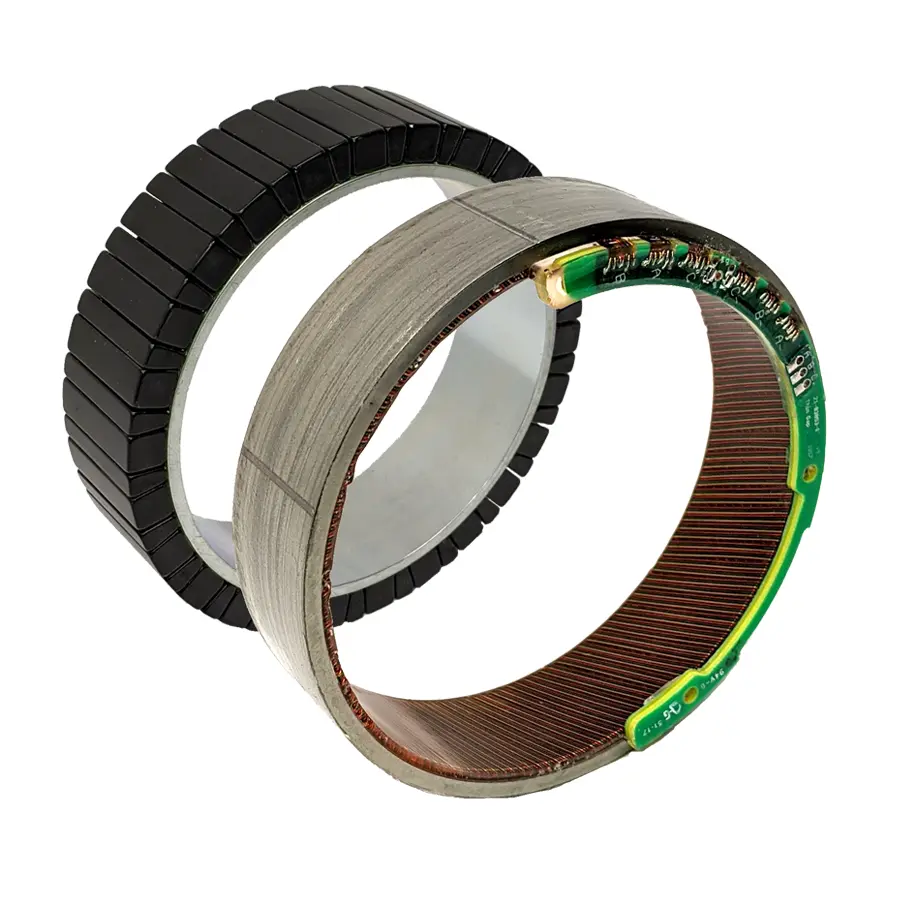

LS Series Brushless Motors
The LS Series is a premium line of slotless, frameless, inner-rotor brushless motor kits designed for low-speed, high-precision applications like gimbals, optics, and robotics. These motors deliver unmatched performance with their cogless design, high torque density, and seamless integration capabilities.
Featuring a range of models with large apertures and configurable winding options, the LS Series ensures precision, efficiency, and flexibility for demanding motion control needs. Perfect for engineers seeking cutting-edge solutions, the LS Series combines innovative inner-rotor design with proven reliability.
Outrunner variants available on request. Please contact us for further information.
The LS series slotless motors performance is summarized below.
Specifications Overview
-
Frame Size (mm)25 - 392.99
-
Inner Diameter (mm)11.9 - 361.96
-
Overall Length (mm)10 - 70.48
-
Bus Voltage (VDC)6 - 80
-
Rated Torque (Nm)0.016 - 29.8
-
Rated Speed (RPM)40 - 6,500
-
Rated Current (ADC)1.27 - 13.01
-
Rated Power (W)4.7 - 575.5
