KinetiMax™ Series High Power Density Frameless Torque Motors

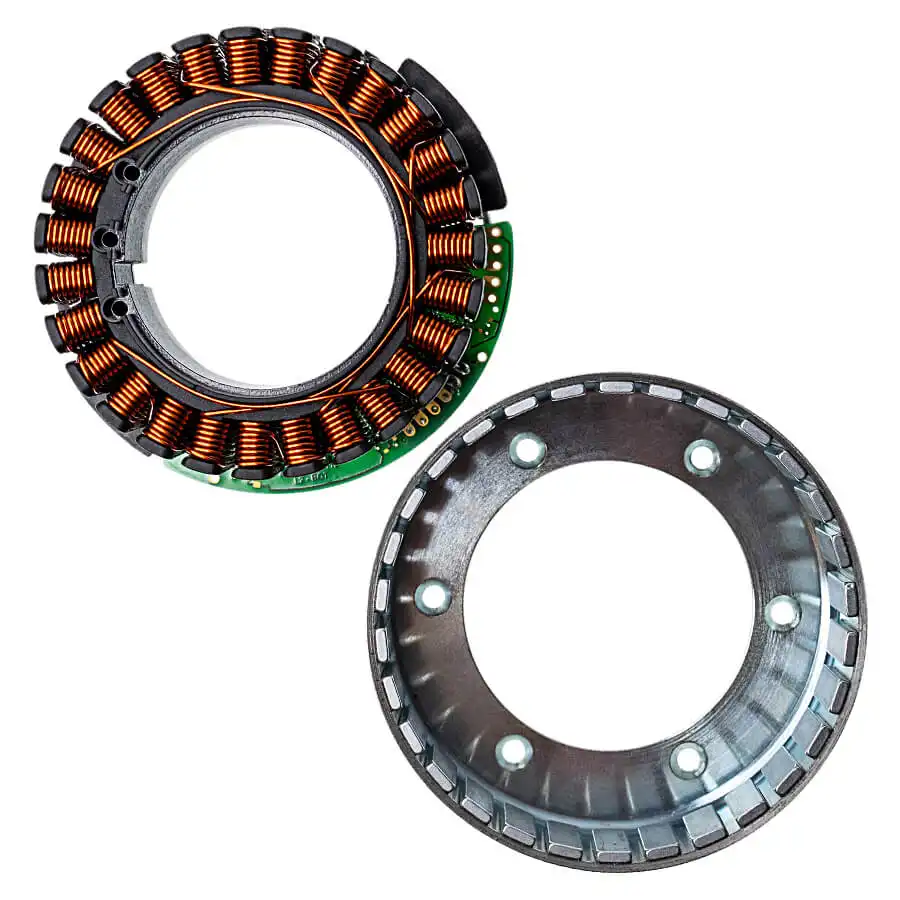

Allied Motion’s KinetiMax™ HPD series are outer-rotor design brushless motors featuring frameless part sets.
Available in six frame sizes with three stack-lengths per size and three windings per stack length, allowing you to select an optimum configuration with an exact performance fit for your application.
The HPD outer-rotor brushless motor series is designed for high-torque, low-cogging applications like robotics, AGVs, and handheld power tools.
The KinetiMax™ HPD series frameless motors performance is summarized below.
Specifications Overview
-
Frame Size (mm)62 - 125
-
Inner Diameter (mm)38 - 77
-
Overall Length (mm)21 - 66
-
Bus Voltage (VDC)14 - 27
-
Rated Torque (Nm)0.24 - 6.7
-
Rated Speed (RPM)1,658 - 4,320
-
Rated Power (W)108 - 1,171
