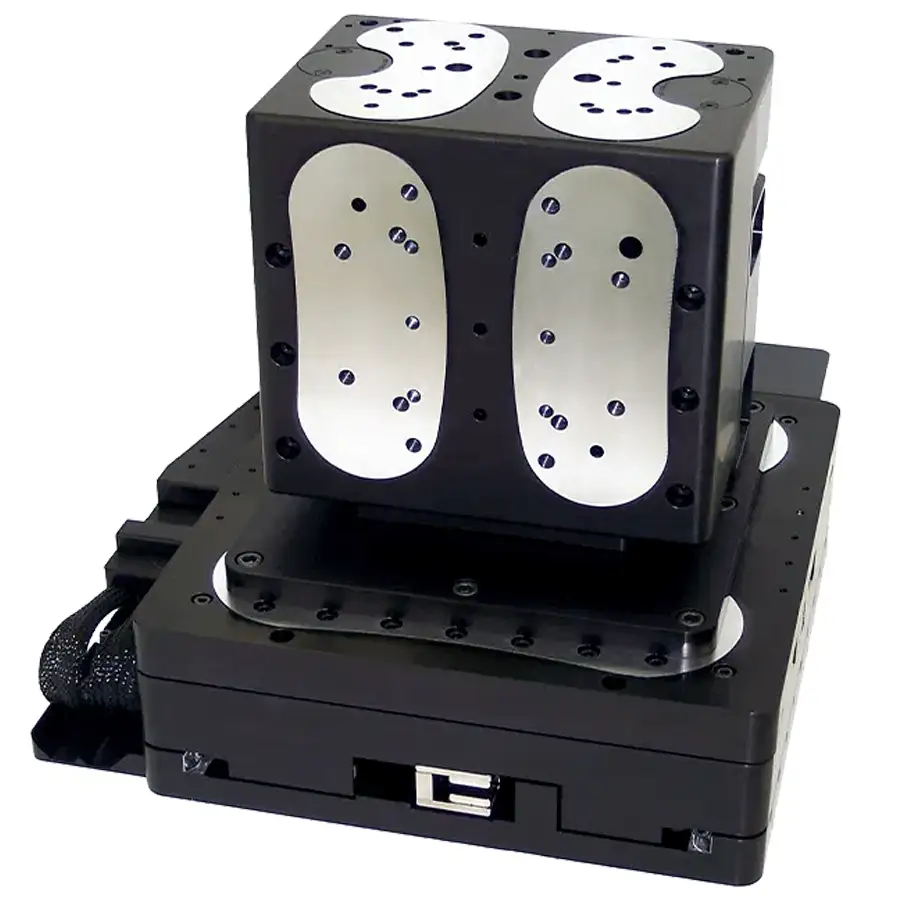

High Load and Force Pneumatic Brake Z Stages
Designed under Allient, ALIO’s high-load Z stages use torque-motor-driven ball screws with spring-engage pneumatic brakes to lift 20 – 50 kg while maintaining nanometer-level repeatability. Perfect for heavy metrology tools requiring long travel and high force.
Benefits & Advantages:
- Lifts 20 – 50 kg without counterbalance
- Pneumatic boost for heavy loads
- ±100 nm repeatability
- Travel up to 50 mm
- Safe holding during power loss
Market Segments & Applications:
Industrial Metrology: Inspection Tools, Microscopy, Heavy Optics: Positioning, Assembly, and Testing
Specifications Overview
-
*Linear Resolution (nm)<5
-
Bi-Directional Repeatability (nm)+/-100 - 125
-
Displacement Accuracy (µm)+/- 0.5 - 5
-
Linear Velocity (m/sec)0.1
-
Travel Z (mm)24 - 50
-
Acceleration (G)1
-
Payload Capacity (kg)20 - 50
*Analog Output with 4096 Interpolation. See datasheet for Digital AqB Output options.
