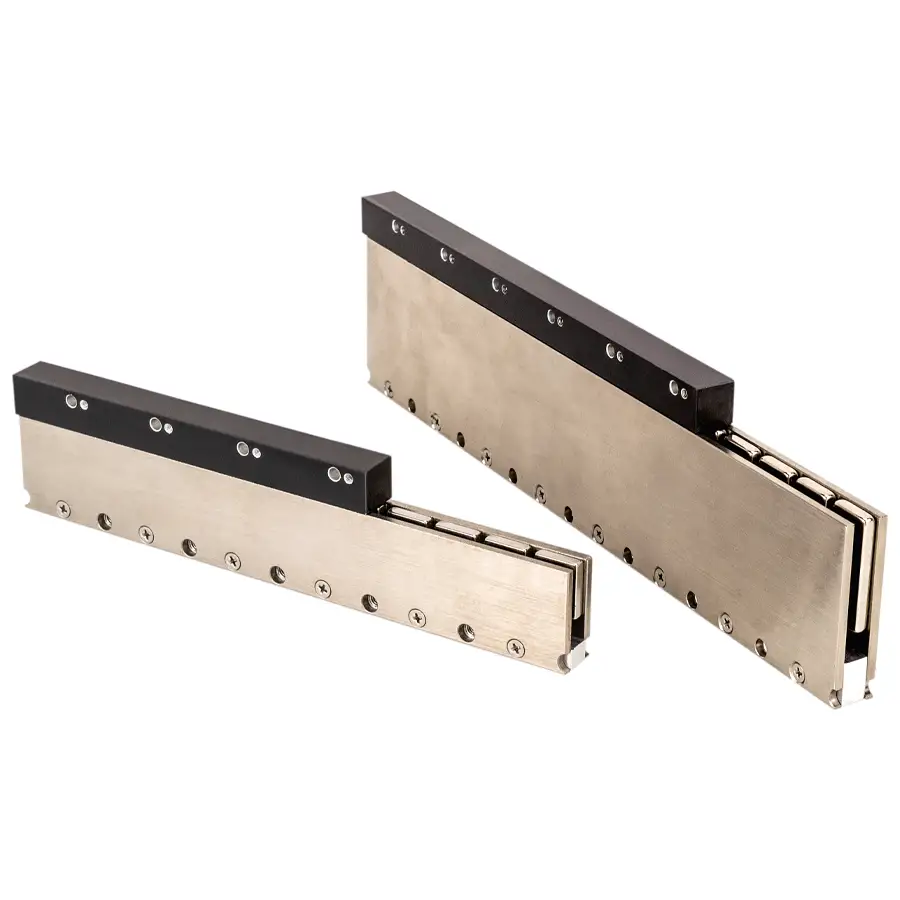

C-Series Linear Motors

Ironless Linear Motors for Compact, High-Precision Applications

The C-Series Ironless Linear Motors from Allient offer ultra-low profile, high-performance motion control with a cog-free design. Engineered for high precision and seamless integration, these motors are part of the Allied Motion technology portfolio under Allient, a global leader in Motion, Controls, and Power.

Key Features

• Ultra-Low Profile: Starting at just 10 mm (0.4”) in thickness high—perfect for compact stages and equipment with tight space constraints.
• Ironless Coil Design: Cog-free operation ensures minimal velocity ripple, superior smoothness, and faster point-to-point positioning.
• High Force Density: Achieves up to 71.4 N continuous and 143 N peak force in a small form factor.
• Thermal Efficiency: Optimized thermal path for improved power handling and continuous operation.
• Flexible Integration: Custom coil lengths, mounting options, and temperature sensor configurations (PTC/NTC thermistors).

Applications

• Precision semiconductor wafer handling and inspection
• Medical device and laboratory automation
• Low-force, constant velocity linear actuation
• Motion stages requiring zero-cogging performance

Allient’s linear motors are engineered with precision and backed by global support—ensuring your motion system performs at its best.

The C-Series linear motors performance is summarized below.
