Hybrid Hexapods
Allient | ALIO Hybrid Hexapod® – Next-Generation 6-DOF Motion Control
The ALIO Hybrid Hexapod®, offered under the Allient umbrella, is a breakthrough in 6-Degree-of-Freedom (6-DOF) motion control technology. Unlike traditional Stewart platforms that rely on serial linkages and legacy kinematics, the Hybrid Hexapod® combines a high-precision XY monolithic stage with a tripod, providing Z axis motion, and a continuous rotation theta axis—creating an ultra-stiff, ultra-accurate, high-speed positioning system with virtually unlimited XY travel.
Engineered for applications requiring extreme precision, the Hybrid Hexapod® delivers <100 nm 3D Point Precision® repeatability, exceptional path accuracy, superior stiffness, and dramatically improved dynamic performance. Users gain a larger work envelope, more consistent tool center point control, and better overall motion fidelity than can be achieved with conventional hexapod systems.
This patented design has been adopted across applications such as laser processing, die bonding, fiber to chip coupling, optical inspection, medical device assembly, and precision metrology, where reliability and precision in six axes are mission-critical.
Standard Hybrid Hexapods
The Standard Hybrid Hexapod® from ALIO offers revolutionary 6-DOF precision by replacing traditional Stewart platform kinematics with a monolithic XY plus tripod architecture. This design eliminates backlash, pitch errors, and friction, delivering superior nano-precision at...
View Details >>
MINI Hybrid Hexapods
The MINI Hybrid Hexapod® from Allient’s ALIO brand provides full 6-DOF nano-precision in a compact, scalable architecture ideal for small-format optical and imaging systems. While this hexapod can be compared to traditional Stewart platforms, it...
View Details >>

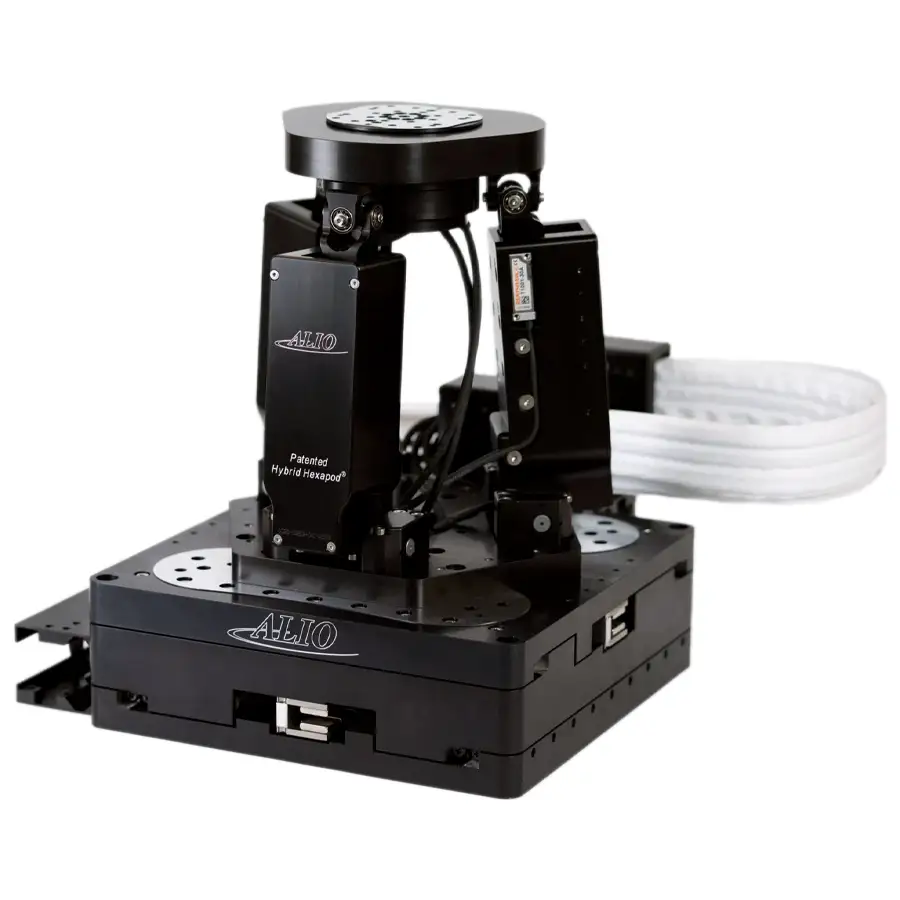

Angulares Tip-Tilt Range Hybrid Hexapods
As part of Allient, ALIO’s Angulares™ Hybrid Hexapod provides the widest angular travel range of any 6-DOF positioner on the market, delivering ±60° tip/tilt with unlimited XY travel and full continuous 360° theta-Z. More enhanced...
View Details >>
Vacuum Hybrid Hexapods
As part of Allient, ALIO’s Vacuum Hybrid Hexapod is engineered specifically for ultra-high vacuum (UHV) environments where traditional stacked motion systems fall short. Instead of layering multiple stages, increasing height, footprint, outgassing surface area, and...
View Details >>Competitive Advantages of the ALIO Hybrid Hexapod®:
- Significantly outperforms traditional hexapods in speed, stiffness, accuracy, and path performance
- <100 nm Point Precision® repeatability across all 6 axes
- Virtually unlimited XY travel with a larger work envelope
- Fully programmable Tool-Center-Point (TCP) locations and Rotated Coordinate System (RCS) for complex workflows
- Reduced error accumulation compared to serial-kinematic hexapods
- Ideal for high-precision manufacturing and inspection environments
As part of Allient, ALIO’s Hybrid Hexapod® delivers a category-defining advance in 6-DOF motion control—helping OEMs and advanced manufacturers achieve higher throughput, improved precision, and greater competitive advantage.
